Remote counter

Remote Engine Hour Counter

€379.00

Out of stock

Never miss an important milestone of your machine again

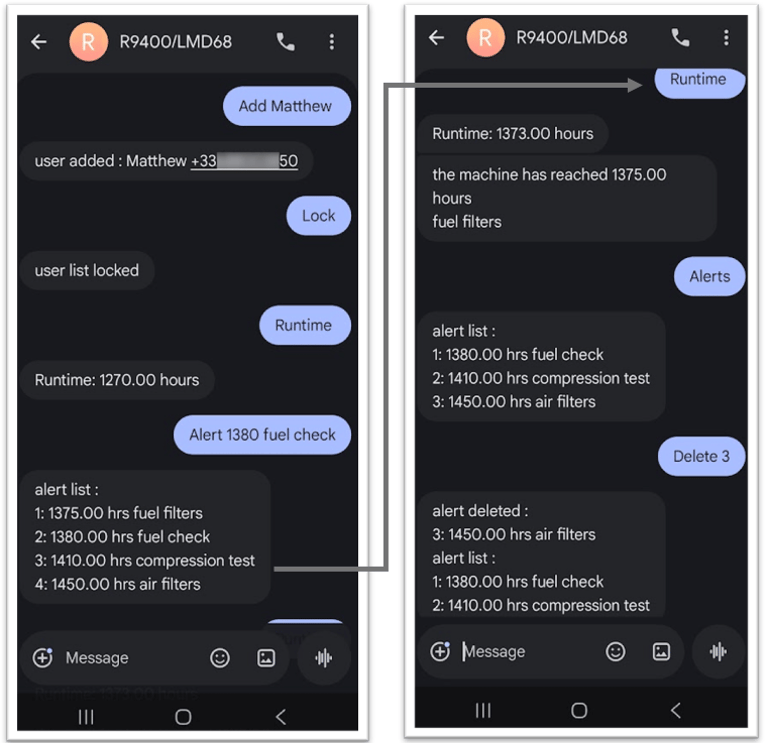

  • Monitor your machine’s engine hours remotely via SMS

  • Add up to 5 users

  • Easily manage the user list via SMS commands

  • Set up to 10 alerts to be automatically reminded of scheduled services or maintenance operations

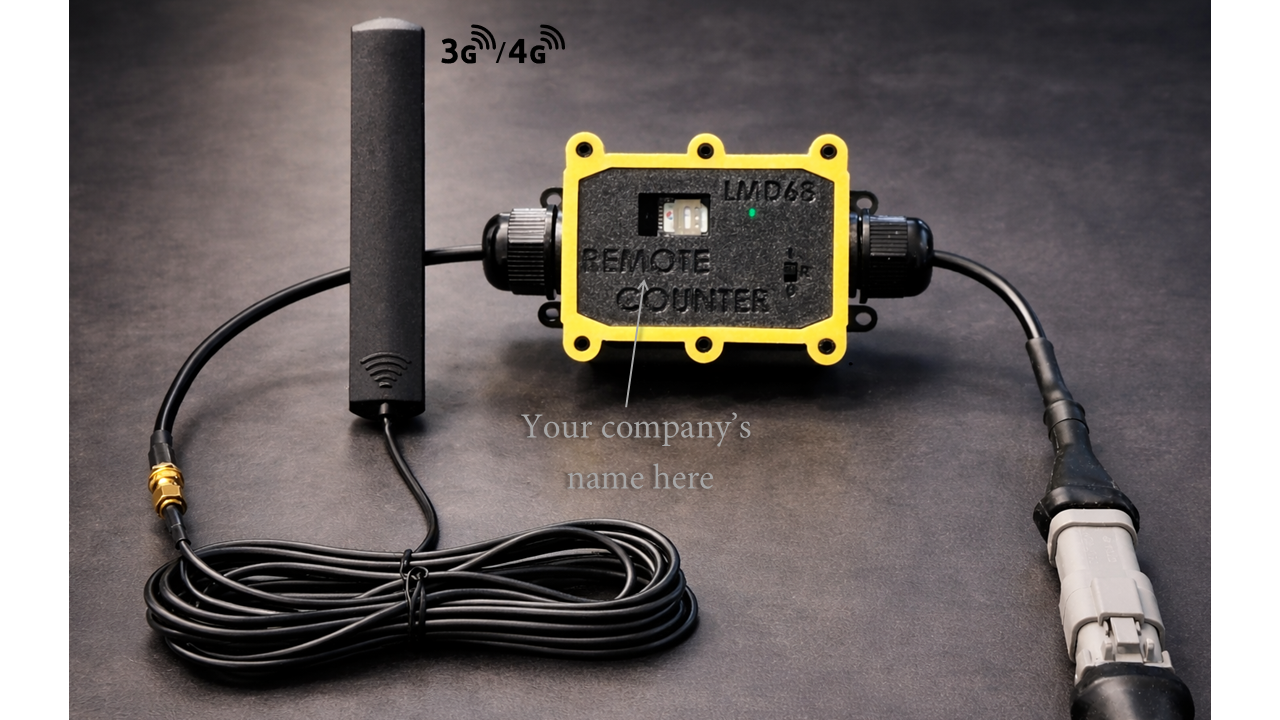

  • Customizable front plate

  • Wireless reprogrammable firmware

Compatibility:



Compatible with any machine using J1939 or ISOBUS CAN protocols

  • Mining truck / Road truck

  • Excavator

  • Electricity generator

  • Drill machines

  • Construction

  • Agricultural equipment (J1939/ISOBUS)



Contact us to check the compatibility of your equipment

Ruggedized design:

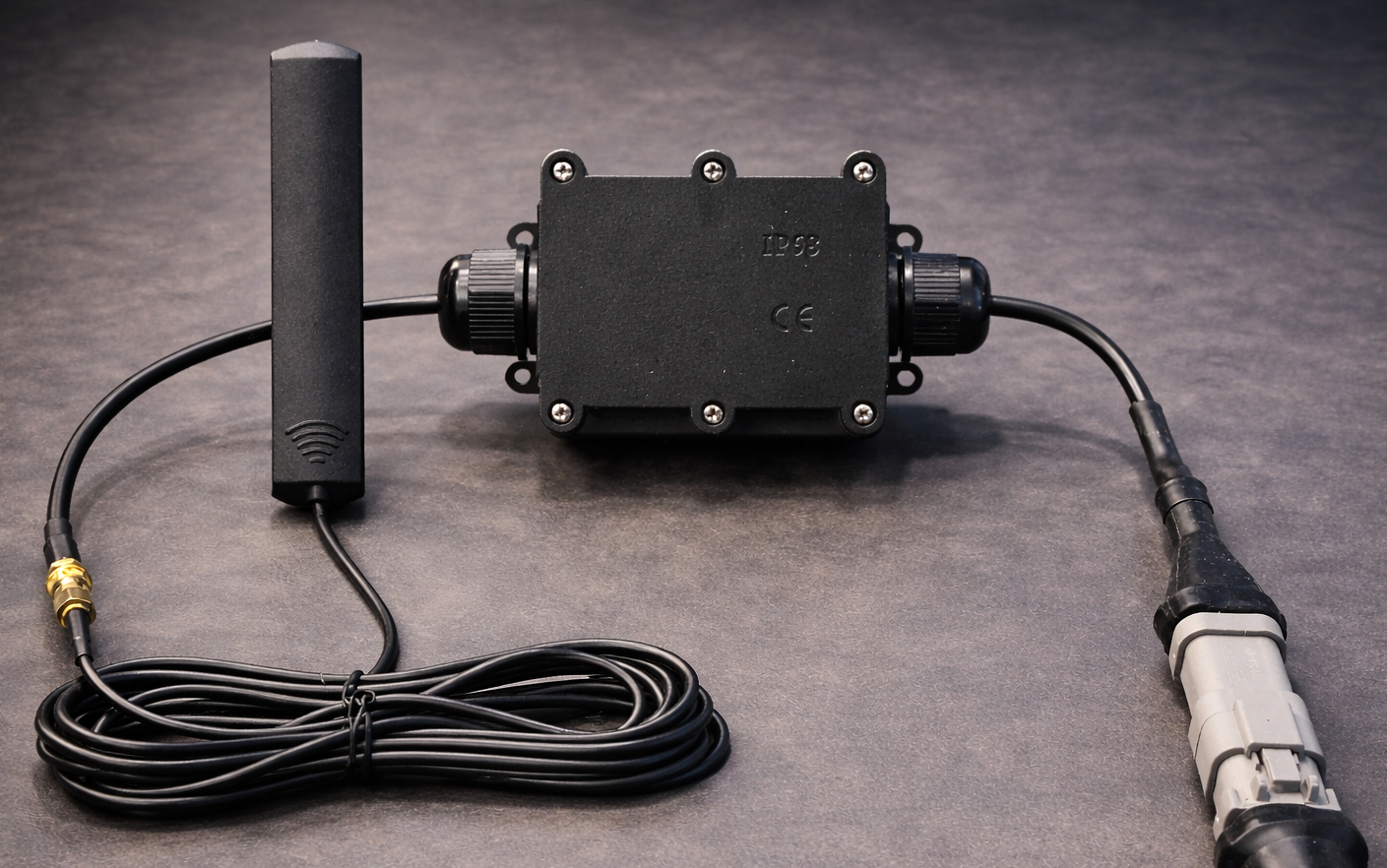

Designed for harsh environments, the remote counter features a fully sealed IP68 enclosure that protects against water, dust, and grease, combined with a rugged internal architecture that withstands shocks and vibrations.



Network and SIM card:

Optional SIM card supply

The remote counter uses a standard Nano SIM card and operates on the LTE Cat-1 network. Designed for global deployment, it supports the following frequency bands:

-  LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66

-  LTE-TDD: B38/B39/B40/B41

-  GSM/GPRS/EDGE: 850/900/1800/1900 MHz

Contact us to verify compatibility with your local cellular network. Custom network compatibility is also available on request.

Main characteristics:

-  Power supply: 8-30V DC (110/240V AC version available on request)

-  Power consumption: 15mA @24V (0.3W) / 4mA @24V for low power version

-  Protected against polarity inversion

-  CAN bus (J1939/ISOBUS) speed compatibility: 250 or 500 kbps (auto-detection)

-  Deutsch DT 4-pin connector for machine interface

-  Dimensions (counter only): 128x69x37mm

-  Antenna gain: 8 dBi / dimensions: 125x22x3mm / Wire length: 3m / Fixation: 3m double-sided tape

-  Operating temperature: -20°C to +65°C

-  Ingress protection: IP68



Don't hesitate to contact us for any question
